Motion control applications (from factory automation to control systems for mobile machinery) require precise and real-time understanding of the physical location information of mechanical equipment. The absolute value rotary encoder will not lose the absolute positioning information of the device in the event of power loss, and can measure accurately and clearly.

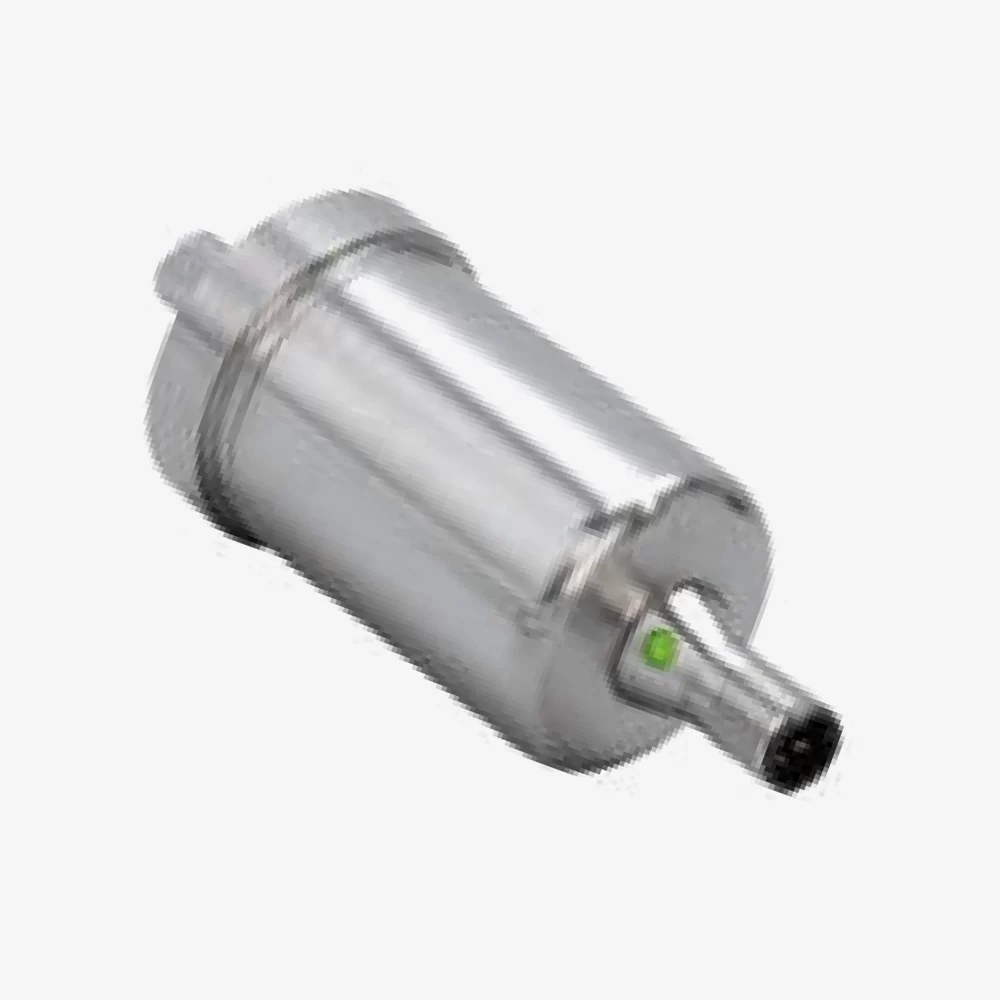

Multi turn
The multi turn encoder can provide a range of over 360 degrees by measuring additional revolutions.

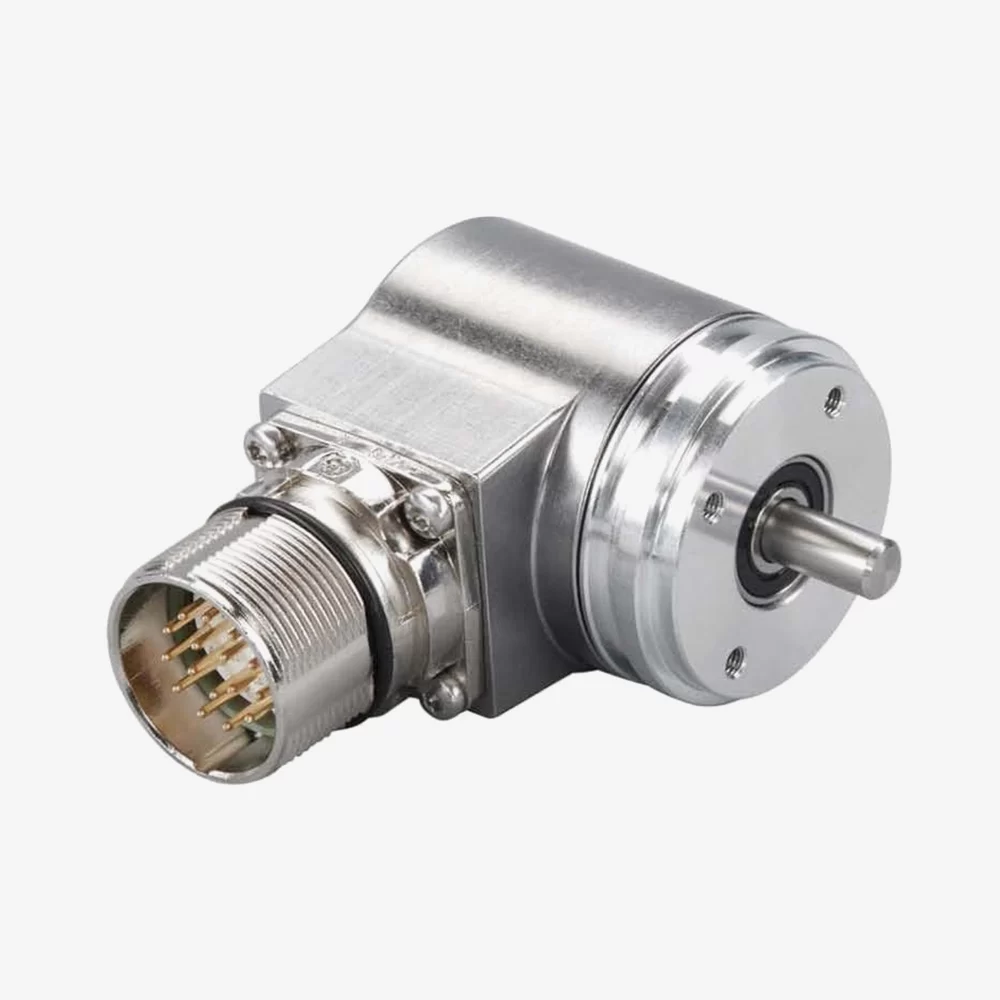

Programmable encoder
Implement the functions of multi turn absolute value encoder and incremental encoder on a common hardware platform
Configuration parameter
Types of interfaces
Simulation,CANopen, Profibus, DeviceNet, J1939, Interbus, EtherCAT, Ethernet/IP, ProfiNet, Powerlink, Modbus+Ethernet TCP, SSI
IXARC Absolute Rotary Encoder Communication Interface

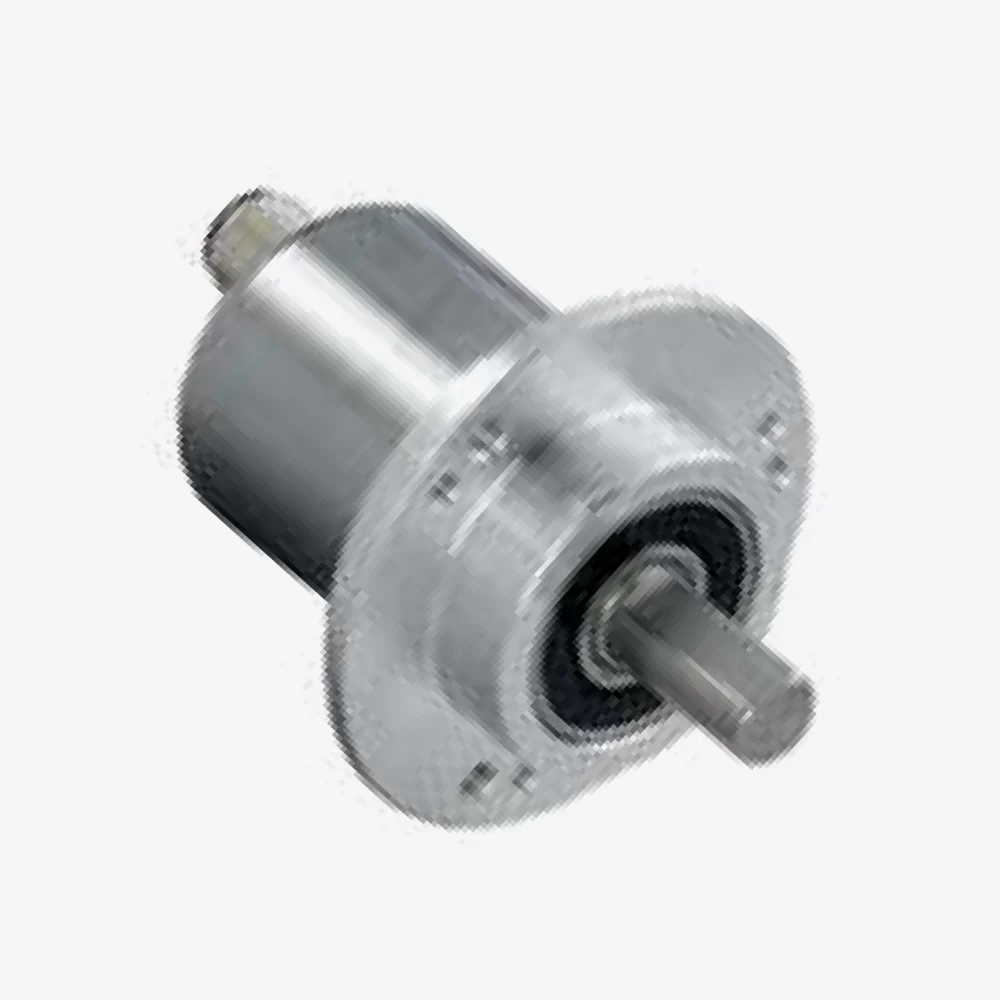

Encoder suitable for explosive environments

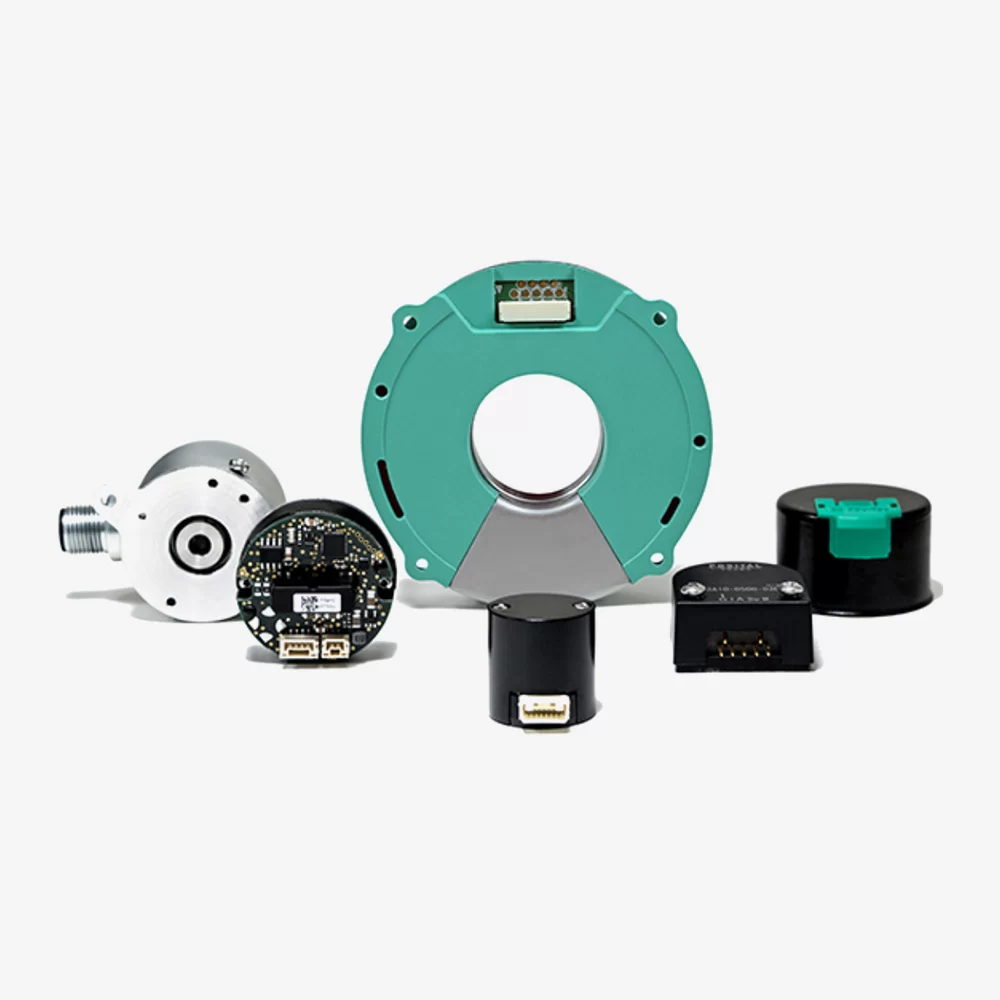

The new KIT encoder kit from POSITAL provides a solution that combines high precision, high reliability, and high cost-effectiveness. The absolute value version provides 17 bit single circle measurement and a multi circle measurement range of over one million circles.
Resolution: up to 17 bits, multi turn range: up to 32 bits
Accuracy: 0.1 °
Diameter: 36 mm, height: 24.2 mm (multiple circles including shell)
Temperature range: -40 to+105 ° C
Automatic calibration – no need for complex external equipment
Wide diagnostic coverage
Multiple programmable parameters
Advantage
POSITAL non-contact measurement technology does not require any moving parts and has extremely high impact and vibration resistance.
The POSITAL encoder kit solution supports multiple non proprietary electrical interfaces, including BISS and SSI interfaces for absolute value measurement, as well as UVW and ABZ interfaces for incremental signals. Other protocols based on RS485 interface can also be implemented.
Multi cycle absolute value&incremental interface
Electrical interfaces: BiSS C, BiSS Line, SSI, RS485
No battery required – no maintenance required
Bearingless
Compact design
Not affected by dust and moisture interference
High impact and vibration resistance characteristics

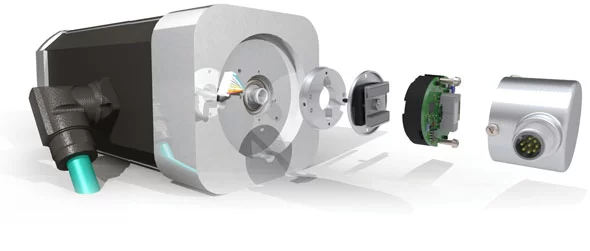

Upgrade your existing motor motion control application
Enabling you to easily convert incremental feedback into absolute position measurements, POSITAL offers a complete product line that can replace conventional US Digital and Broadcom (Avago) incremental KIT versions in mechanical aspects.
Same footprint as E5 and HEDS-5500 versions
Multiple aperture sizes ranging from 4mm to 10mm (1/4 to 3/8 inch)
Clear installation process – no special training required
Magnetic technology that is more robust than optics
Extra M12 connectors can be used
Broadcom (Avago) and Us Digital Cross Index
Energy harvesting system – no battery required
The POSITAL energy harvesting system, based on the principle of the Wiegand effect, successfully addresses the requirements for batteries and complex gear systems.
