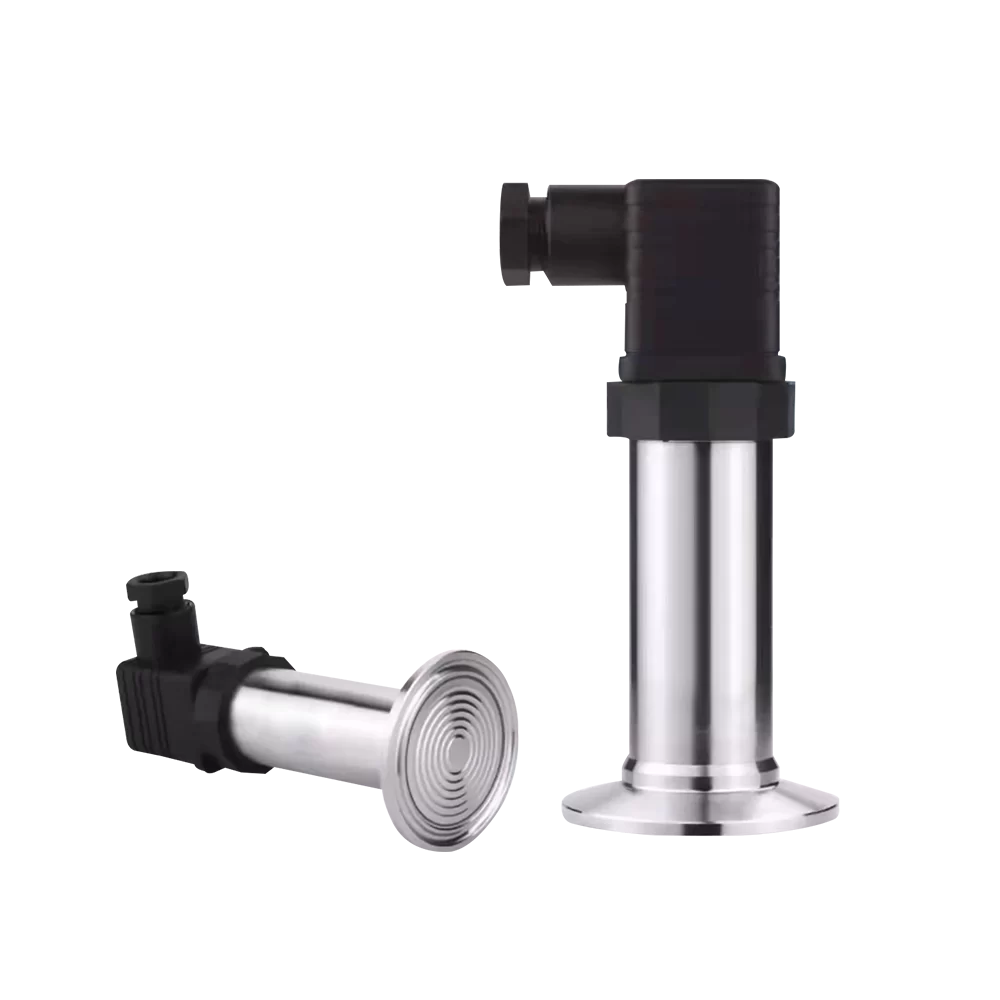

Flat membrane pressure sensor is a commonly used pressure sensor in industrial practice, which is widely used in various industrial automation environments, including oil pipelines, water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil wells, power, ships, shield tunneling machines, rotary drilling rigs, horizontal directional drilling, oil extraction machines, machine tools, pipeline air supply, boiler negative pressure and many other industries.
The elastic body of the flat membrane pressure sensor is made of high-quality materials, with membrane isolation technology and no pressure holes in the test head. There is no blockage caused by viscous media during the measurement process. The integrated structure design is suitable for pressure measurement and control of viscous media.
The working principle of a flat membrane pressure sensor is that the medium pressure directly acts on the diaphragm of the sensor, causing the diaphragm to produce a micro displacement proportional to the medium pressure, resulting in a change in the resistance of the sensor. This change is detected by electronic circuits and converted into a standard signal corresponding to this pressure.
Comprehensive accuracy: 0.2% FS, 0.5% FS
Output signal: 4-20mA (two-wire system), 0-5V, 1-5V, 0-10V (three wire system)
Supply voltage: 24DCV (9-36DCV)
Environmental temperature: normal temperature (-40~85 ℃)
Zero temperature drift: ≤± 0.05% FS ℃
Range temperature drift: ≤± 0.05% FS ℃
Compensation temperature: -10~70 ℃
Safe overload: 150% FS
Extreme overload: 200% FS
Response time: 2 mS (up to 90% FS)
Load resistance: current output type: maximum 800 Ω; Voltage output type: greater than 5K Ω Insulation resistance: greater than 2000M Ω (100VDC)
Sealing grade: IP65
Long term stability performance: 0.1% FS/year
Vibration impact: Within the mechanical vibration frequency range of 20Hz to 1000Hz, the output variation is less than 0.1% FS
Electrical interface (signal interface): Four core shielded wire, Four core aviation connector, Tightening nut

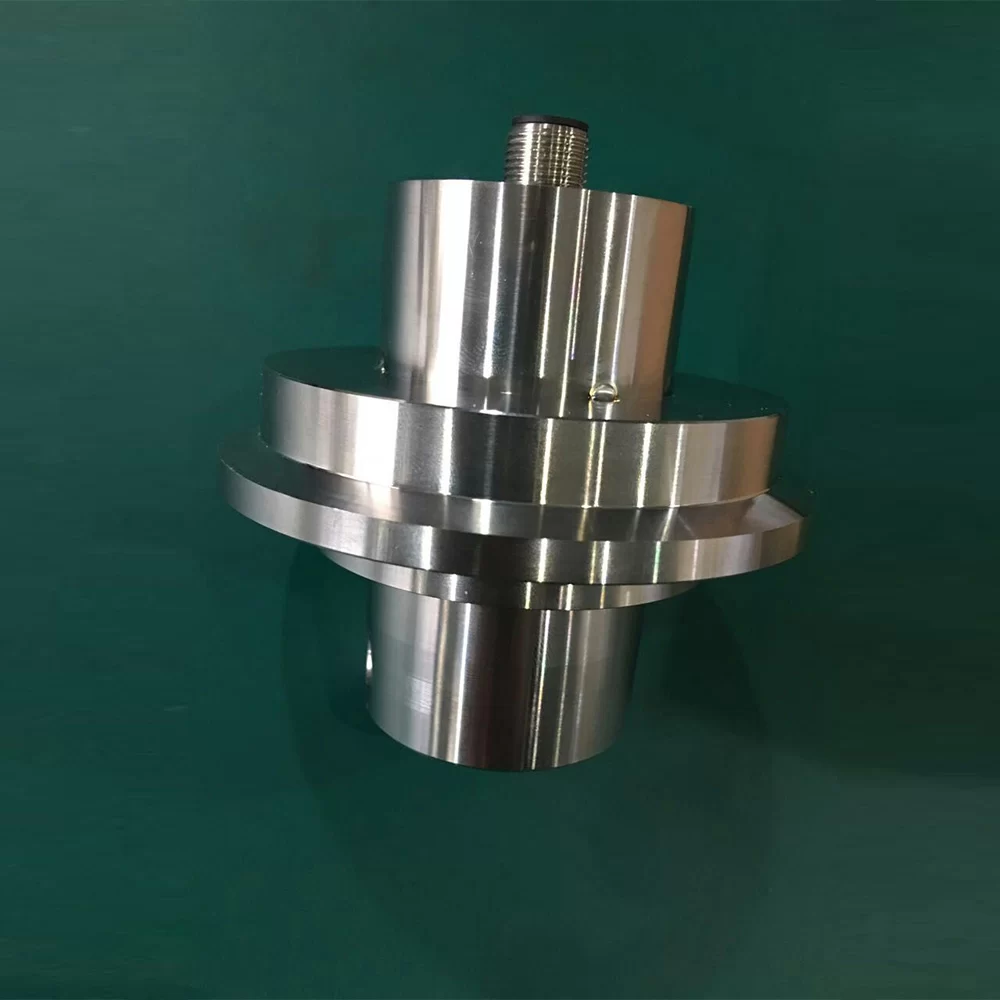

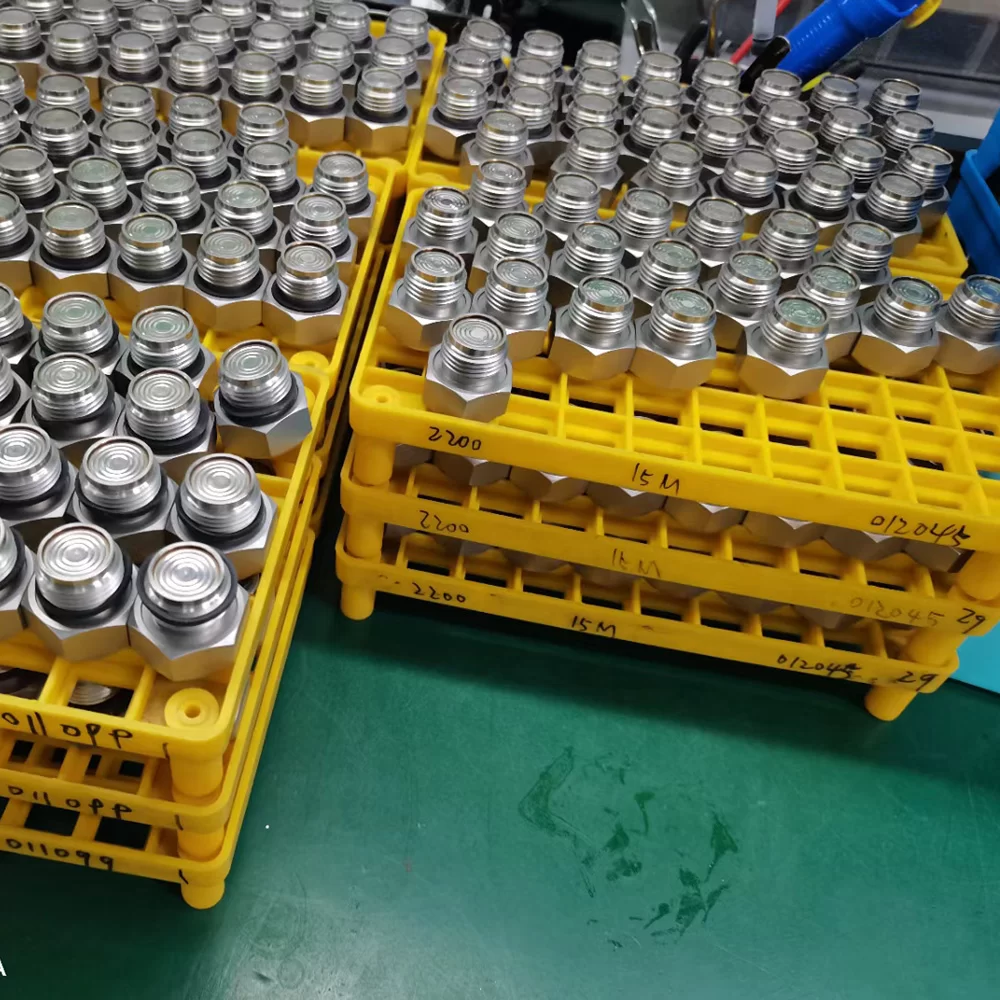

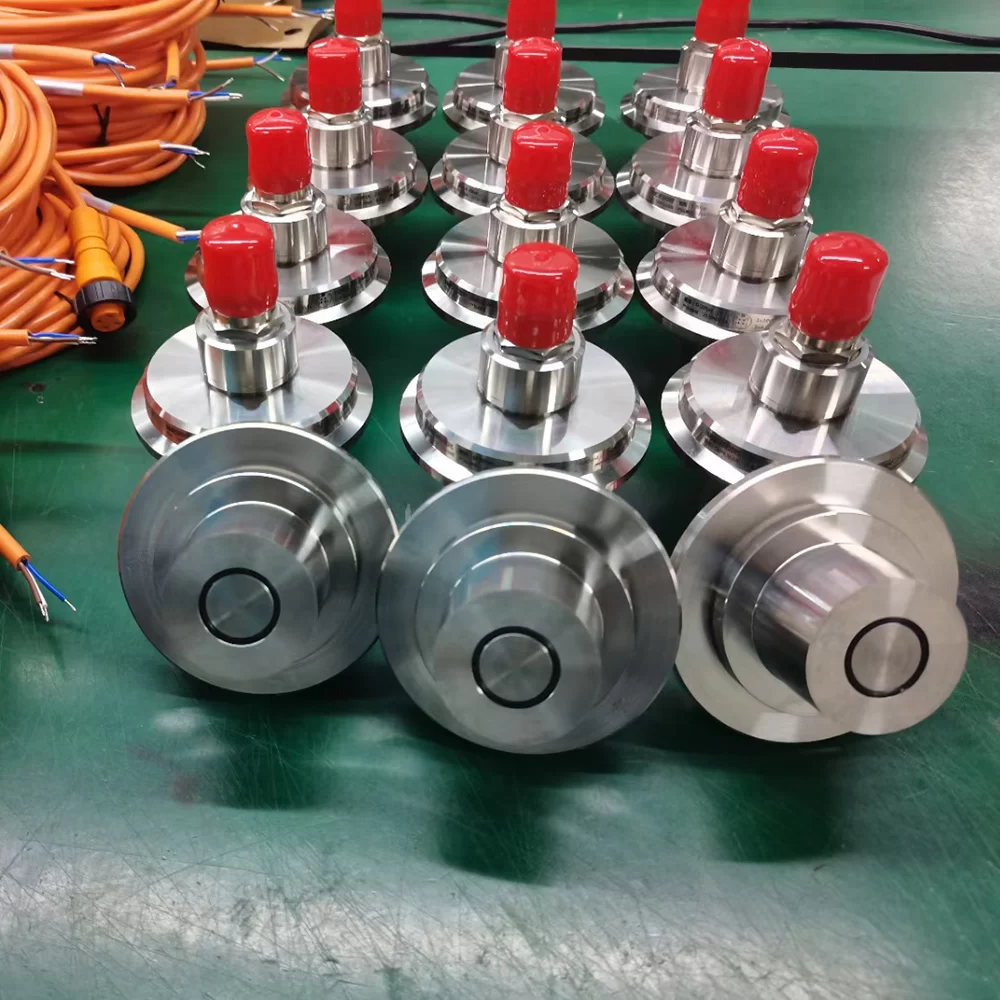

Our company has launched hard flat membrane pressure sensors and soft flat membrane pressure sensors based on different industry applications.
