The SP8200 series OEM joint type pressure core adopts imported high-quality MEMS silicon wafers and is produced with the company’s unique design and years of process experience. The production process of each product undergoes strict aging, screening, and testing to ensure its excellent quality and high reliability, providing customers with high-quality products for long-term reliable use.
This product adopts a joint flat film thread installation structure design, which is easy to assemble, clean, and highly reliable. It is suitable for use in food, hygiene, or viscous medium pressure measurement applications.
Measurement range -100kPa… 0kPa~20kPa… 35MPa
Wide temperature compensation range: 0 ℃~70 ℃
All stainless steel 316L material

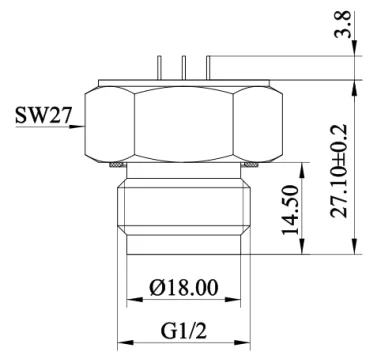

Flat membrane structure design for easy assembly of joints
Food, beverage, and hygiene industries
Industrial process control
Pressure measurement of viscous media
Gas, liquid, and vapor pressure detection

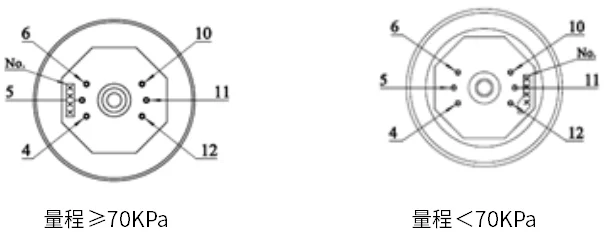

| Range ≥ 70KPa | ||
| Pin | Electrical Definition | Wire color |
| 4 | Output positive（+OUT） | Red |
| 10 | Output negative（－OUT） | Blue |
| 11 | Input negative（－IN） | Yellow |
| 12 | Enter positive（+IN） | Black |
| Range＜70KPa | ||
| Pin | Electrical Definition | Wire color |
| 4 | Enter positive（+IN ） | Black |
| 5 | Output negative（－OUT） | Blue |
| 11 | Output positive（+OUT） | Red |
| 12 | Input negative（-IN） | Yellow |
